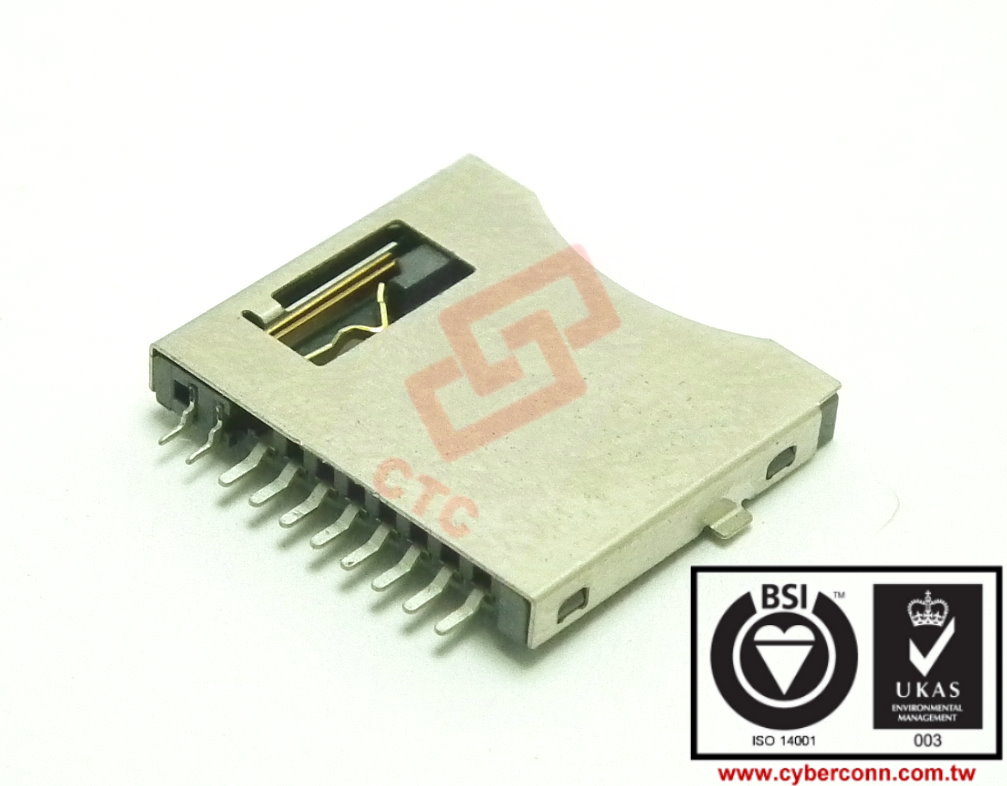

Micro SD Card Reader , Push-Push |
|
Material :
insulator: LCP,rated UL94V-0,color:black.
contacts: Phosphor Bronze.
Tin 160μ" at Solder Tail,
Selectived Gold on Contact Area Plating.
Ground:Phosphor Bronze, Tin 160μ".
Shell:stainless.
Electrical Characteristics:
Operating voltage:250V(AC/DC)
Current rating:0.5A
Operating Temperature:-20℃~+65℃
Insulation resistance:1000M ohms min. at 250VDC.
Dielectric withstanding voltage:500VAC / 1 minute.
Contact resistance:100m ohms max.
Mating cycle:10000 cycles,spring is not breaking. |
|
|
|
|
|
|
|
|
